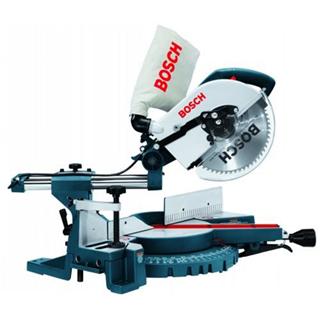

Bosch GCM 10 S Sliding Mitre Saw 110v

KPT Code: GCM10S-A

Feature Overview

Saw blade diameter 254 mm

Depth x length x height 78 x 68 x 54 cm

Cutting capacity, 0° 87 x 305 mm

Cutting capacity, 45° mitre 87 x 216 mm

No-load speed 4.700 rpm

The Bosch GCM10S Sliding Mitre Saw is a sliding mitre saw combining a large cutting capacity with the highest precision. This model ensures precise cuts due to parallel guidance of the slide function, and it has a maximum cutting width of up to 305mm with 87mm maximum cutting height for a variety of applications. It also has a powerful 1800 watt motor to cope with the hardest of jobs.

52° left - 62° right mitre angle for various angle cuts
Spindle lock for easy saw blade changes
Swivelling saw head for bevel cuts up to 47° on the left
Table and stop made of high-quality die-cast aluminium

Bosch GCM 10 S Sliding Mitre Saw 110v Technical data

Cutting capacity, 0° 87 x 305 mm
Cutting capacity, 45° mitre 87 x 216 mm
Cutting capacity, 45° incline 53 x 305 mm
Mitre setting 52 ° L - 62 ° R
Incline setting 47 ° L
Depth x length x height 78 x 68 x 54 cm
No-load speed 4.700 rpm
Saw blade diameter 254 mm
Saw blade bore 30 mm
Weight without cable 21,5 kg

Saw blade 254 x 30 mm
Quick-action clamp
Dust bag
Insert plate
Dust extraction adapter
