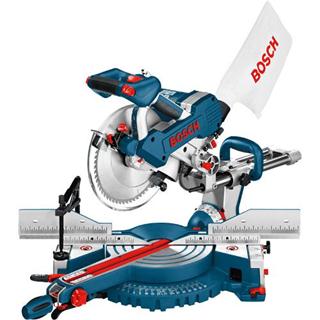

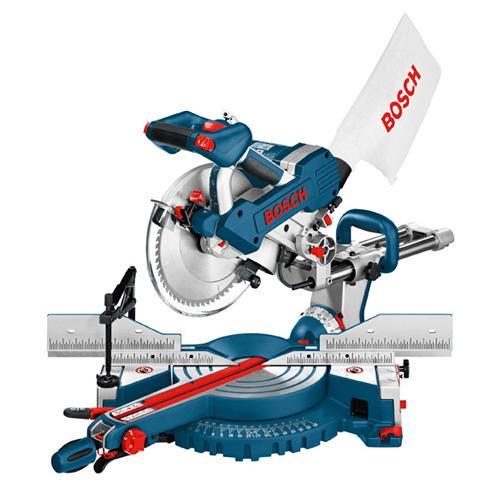

Bosch GCM 10 SD Double Bevel Sliding Mitre Saw 254mm 240v

Bosch GCM 10 SD Sliding Mitre Saw 240v

KPT Code: GCM10SD-B

The Bosch GCM 10 SD double bevel sliding mitre saw is built for flexibility and convenience, but also features a 1800w motor for tough jobs. It has two carrying handles for easy transportation, a choice of four positions for the handle, table extensions that can be adjusted tool-free, and angle settings on the front of the machine for easy access.

• Incline setting on both sides (up to 47 degrees on the right, up to 46 degress on the left)
• Handle can be locked conveniently in 4 positions
• Tool-free adjustable table extensions for long workpieces
• Large cutting capacity, up to 85 mm x 305 mm
• Mitre angles up to 60 degrees on the right are possible
• Two carrying handles for convenient transport
• Spindle lock for convenient changing of saw blades

Bosch GCM 10 SD Sliding Mitre Saw 240v Technical data

• Cutting capacity, 0° 85 x 305 mm
• Cutting capacity, 45° mitre 85 x 216 mm
• Cutting capacity, 45° incline 50 x 305 mm
• Mitre setting 52 ° L / 60 ° R
• Incline setting 47 ° L / 46 ° R
• Depth x length x height 86 x 64 x 69 cm
• No-load speed 5.000 rpm
• Saw blade diameter 254 mm
• Saw blade bore 30 mm
• Weight 27,0 kg
• Rated power input 1.800 W

• Saw blade 254 x 30 mm
• Dust bag with adapter
• Quick-action clamp
• Insert plate
