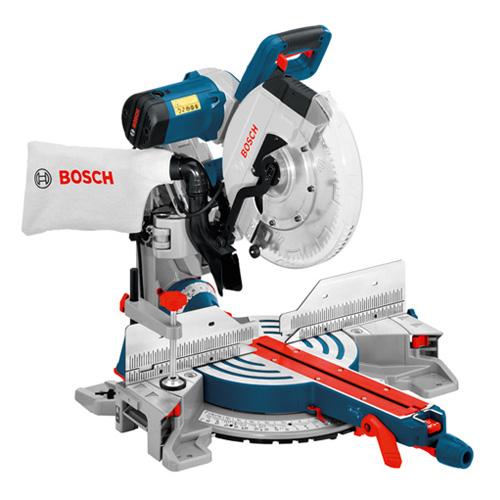

Bosch GCM 12 GDL Double Bevel Axle-Glide Sliding Mitre Saw 305mm 110v

Bosch GCM 12 GDL Axle-Glide Sliding Mitre Saw 110v

KPT Code: GCM12GDL-A

The Bosch GCM 12 GDL sliding mitre saw is a very precise, user-friendly mitre saw that also has enough power to cut thick wood in the 2000w motor. Many features make the GCM 12 GDL a joy to use, such as the frictionless slide mechanism, the carry handle which allows for easy transportation, the location of the controls in easy reach, and efficient dust extraction.

• Lasting precision due to innovative, maintenance-free and extremely robust guide arm
• Frictionless slide mechanism ensures very easy, non-tiring sawing
• Accurate cuts and the highest cut quality due to integrated double line laser and -Top Precision Best for Wood- saw blade
• Efficient dust extraction due to optimised suction spouts
• All controls for mitre and bevel settings are situated on the front of the machine to make work more convenient
• Pull-out material supports integrated on the right and left with integrated length stop
• Integrated carrying handle for easy transport
• Compact slide mechanism enables space-saving positioning directly against the wall
• Groove-cutting function

Bosch GCM 12 GDL Axle-Glide Sliding Mitre Saw 110v Technical data

• Cutting capacity, 0 degrees 104 x 341 mm
• Cutting capacity, 45 degrees mitre 104 x 240 mm
• Cutting capacity, 45 degrees incline 51 x 341 mm
• Mitre setting 52 degrees L / 60 degrees R
• Incline setting 47 degrees L / 47 degrees R
• Depth x length x height 673 x 822 x 686 cm
• No-load speed 3,800 rpm
• Saw blade diameter 305 mm
• Saw blade bore 30 mm
• Weight 32.1 kg
• Rated power input 2,000 W

• Collet
• Dust bag
• Internal hexagon
• Saw blade 305 mm
• Insert plate
