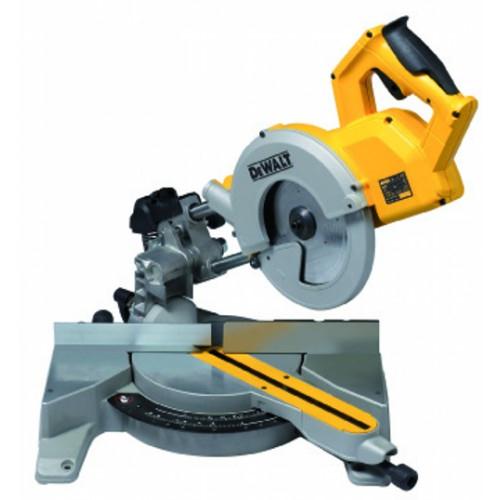

DeWalt DW777 Sliding Compound Mitre Saw 216mm 110v

DeWalt DW777 Sliding Compound Mitre Saw 110v

KPT Code: DW777-A

The DeWalt DW777 Sliding Compound Mitre Saw is one of the most compact and lightweight mitre saws that is ideal for manouvering easily around the workplace. This DeWalt model features a durable 1800W motor with an extension spring design.

• Bevel function angles up to 48° both ways
• Superb heavy duty dust extraction that can cope with the more demanding situations
• Mitre stops at 15°, 22.5°, 30°, 45°
• Quick release mitre mechanism up to 50°
• Sliding left hand fence

DeWalt DW777 Sliding Compound Mitre Saw 110v Technical data

• Power Input 1800 Watts
• Power Output 1100 Watts
• Blade Speed 6300 rpm
• Blade Diameter 216 mm
• Blade Bore 30 mm
• Bevel Capacity 48 °
• Mitre Capacity [right-left] 50-50 °
• Cutting Capacity at 90°-90° (W x H) 265 x 62 mm
• Cutting Capacity at 90°-90° (W x H) 265 x 60 mm
• Cutting Capacity at 45°-90° (W x H) 189 x 62 mm
• Cutting Capacity at 45°-90° (W x H) 190 x 60 mm
• Cutting Capacity at 90°-45° (W x H) 173 x 62 mm
• Cutting Capacity at 90°-45° (W x H) 265 x 48 mm
• Max. Cutting Capacity at 45°-45° 190x48 mm
• Max. Depth of Cut [Saws] 80 mm
• Weight 14.0 kg
• Depth 550 mm
• Length 490 mm
• Height 590 mm

• 24 tooth Series 60 saw blade
• 2 bench mounting bolts
• Blade spanner
• Fence centre support
