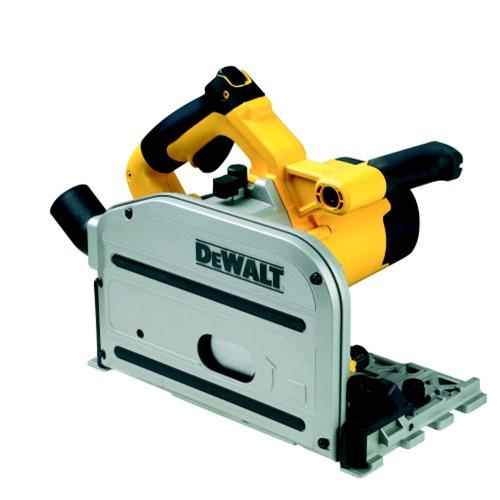

DeWalt Plunge Saw 165mm DWS520KR with DWS5022 1.5m Guide Rail 240v

Code: DWS520KR-B Brand: Dewalt

Select Option

Need Help?

0141 883 4794

Description
Technical Specification
Supplied With
Dewalt Warranty
Delivery note

DeWalt Plunge Saw 165mm DWS520KR with 1.5m Guide Rail 240v

KPT Code: DWS520KR-B

Feature Overview

55mm cutting depth

Guide rail included

Variable speed function

Superb dust extraction facility

Bevel up to 47°

The DeWalt DWS520KR Plunge Saw is a circular plunge saw capable of sawing up to 55m deep which is perfect for altering most common wood door panels. The parallel plunge of this DeWalt model allows the user to maintain a smooth and constant hand position while cutting. The 48 tooth blade is ideal for precision results in laminate with minimal breakout.

Anti kickback function for ultimate user safety and secure saw retention during plunge cuts
Versatile speed settings allow the user to tailor the speed to the material
Full wave electronics maintains a constant speed under heavy load
90% dust extraction with the enclosed guard for a clear view of the working area
DWS5022 1.5m Guide Rail supplied with this kit

DeWalt Plunge Saw 165mm DWS520KR with 1.5m Guide Rail 240v Technical data

Power Input 1300 Watts
Power Output 690 Watts
No Load Speed 1750 - 4000 rpm
Blade Diameter 165 mm
Blade Bore 20 mm
Bevel Capacity 47 °
Max. Depth of Cut at 90º 59 mm
Max. Depth of Cut at 90º[with guide rails] 55 mm
Max. Depth of Cut at 45º 44 mm
Max. Depth of Cut at 45º[with guide rails] 40 mm
Weight 5.1 kg
Length 303 mm
Height 265 mm

48 tooth precision circular saw blade
Heavy duty carrying case
1.5m guide rail
