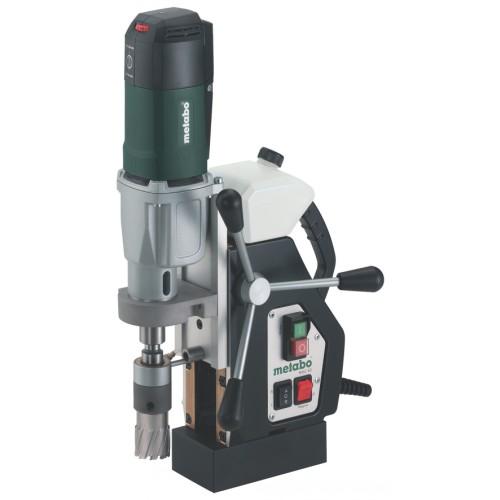

Metabo MAG50 Magnetic Drilling Machine 240v

Metabo MAG50 Magnetic Drill 240v

KPT Code: MEB-MAG50-B

The Metabo MAG 50 Magnetic Drill has a powerful 1,200w Marathon motor, which is protected through the integrated cooling system and overload protection. Cuts of up to 50mm diameter are possible, and the 2-speed gearbox gives a speed range of between 100-250rpm and 200-450rpm. The working range of the MAG 50 makes it the machine of choice for the majority of on and off-site jobs.

• 2-speed oil-filled gearbox for flexibility
• VTC Electronics provide constant speed under heavy loads, speed selection dial and overload protection
• Forward and reverse functionality, making thread tapping possible
• Powerful magnetic base ensures user safety when working

Metabo MAG50 Magnetic Drill 240v Technical data

• Rated input power: 1,200 W
• No load speed: 1.gear: 100-250 rpm
• 2. gear: 200 - 450
• Max. drilling depth: 50 mm
• Max stroke: 160 mm
• Thread cutting: M 16]
• MAG base dimensions: 84 x 168 mm
• Bit retainer: Morse taper MK 2, Weldon
• shaft 19 mm (3/4")
• Max. drilling Ø - Core drill bits: 50 mm
• Spiral drill bits: 20 mm
• Weight: 13 kg
