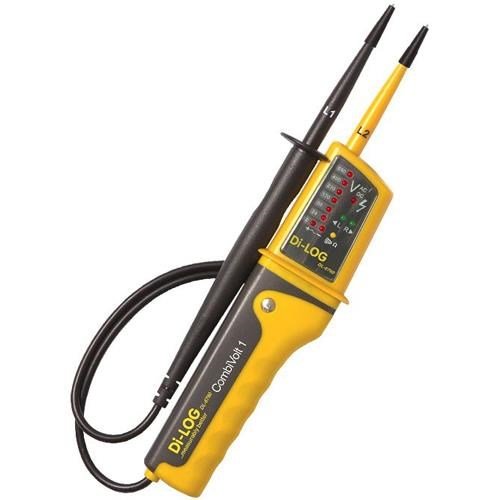

Di-Log DL6780 CombiVolt 1 Voltage and Continuity Tester with Phase Rotation Test

Product Code: DL-VOLTAGETESTER

Ex VAT £ 49.82

Inc VAT £ 59.78

Di-Log DL6780 CombiVolt 1 Voltage and Continuity Tester with Phase Rotation Test

£59.78

in stock

In Stock

24h Dispatch

Next Working Day Delivery* Order before 3pm

View Product Details   down View Delivery Info   down

trusted shops



Description

Di-Log Voltage Tester

This is the Di-Log DL6780 CombiVolt 1 voltage and continuity tester with phase rotation test.

Key features

  • 3-in-1 tester
  • Test AC/DC voltages from 12V to 690V
  • Continuity testing with optical and acoustical indication
  • Automatic switching between voltage and continuity
  • Three-phase rotation test system - "no third hand required"
  • Single pole phase indication
  • Fully compliant with GS38
  • Designed and built according to IEC61010, IEC61243-3
  • Fully operational voltage indication even when the batteries are discharged or when there are no batteries fitted
  • Will not trip any RCD when testing across Live and Earth
  • IP65 dust and splash protection for use outside
  • Electrical torch function for working in dark environments
  • Short response time of less than 0.1 seconds
  • Probe-tip protection for reduced risk of injury
  • Rugged and ergonomic housing for perfect handling

Technical Spec.

  • Part no: DL6780
  • LED resolution: 12, 24, 50, 120, 230, 400, 690
  • Power supply: 2x 1.5V LR03 batteries
  • Dimensions (L x W x H): 255 x 70 x 28mm
  • Weight: 200g

Voltage

  • Range: 12V - 690V AC/DC
  • Voltage detection: Automatic
  • Polarity detection: Full range
  • Response time: < 0.1 s
  • Frequency range: 0 - 400 Hz
  • Peak current: Is < 0.3 A ? Is (after 5s) < 3.5 mA
  • Operation time: 30s
  • Recovery time: 10 min

Single pole voltage indication

  • Range: 100V - 690V AC
  • Frequency range: 50 - 400 Hz

Continuity

  • Range: 0-400 KΩ

Phase rotation test

  • Range: 100V - 690V
  • Frequency: 45 - 65 Hz
