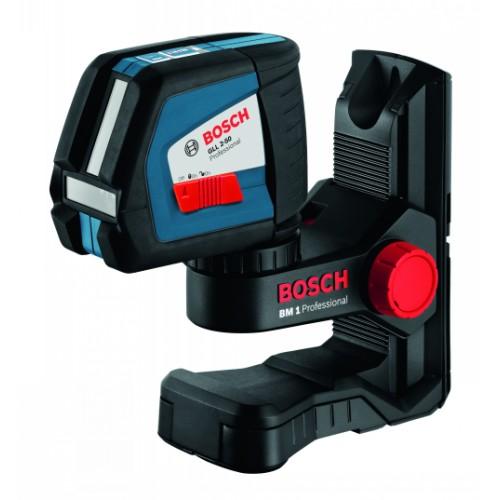

Bosch GLL 2-50 Cross Line Laser with BM1 Bracket

Bosch GLL 2-50 Cross Line Laser with BM1 Bracket

KPT Code: GLL2-50BM

The Bosch GLL 2-50 Self-Levelling Cross Line Laser is a horizontal and vertical pendulum line laser, which gives quick line alignment. This model clearly displays the lines up to 20m away (increased to 50m with a receiver) and is accurate to ±3mm at a distance of 10m, ideal for indoor fitting and installation. This product includes the BM1 universal mounting bracket.

• Quick and easy controls
• Vertical, horizontal, and cross-line mode
• Softgrip covering protects against damage from impacts
• Pendulum lock ensures safe transport
• Extremely precise in use with an accuracy of ±3 mm at a distance of 10 m
• Horizontal and vertical self-levelling up to ±4°
• Working range of 50 m with the Receiver LR 2 Professional (optional accessory)

Bosch GLL 2-50 Cross Line Laser with BM1 Bracket Technical data

• Laser diode 635 nm, < 1 mW
• Operating temperature -20 – 50 °C
• Storage temperature -20 – 70 °C
• Laser class 2
• Working range 20 m
• Working range with receiver 50 m
• Working range without receiver 20 m
• Levelling accuracy ± 0.3 mm/m
• Self-levelling range ± 4°
• Dust and splash protection IP 54
• Power supply 3 x 1.5 V LR6 (AA)
• Operating time, max. 12 h
• Tripod thread 1/4"
• Weight, approx. 0,45 kg
• Length 118 mm
• Width 57 mm
• Height 89 mm
• Projection 2 lines

• BM1 Professional Universal Mount (0 601 015 A00)
• Carrying case
• 3 x 1.5 V (AA) batteries
