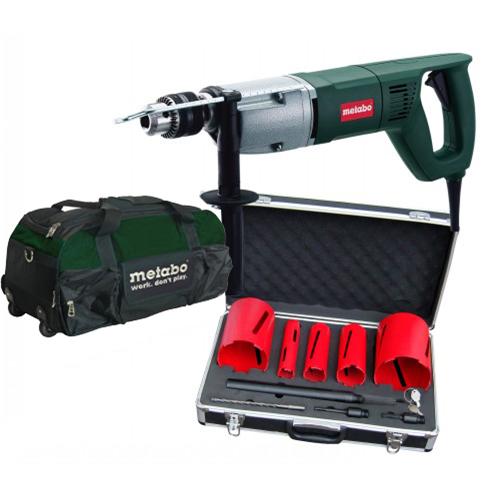

Metabo Diamond Core Drill BDE1100+CORES with 5pce Diamond Core Set 240v

Code: MEB-BDE1100+CORES-B Brand: Metabo

Select Option

Need Help?

0141 883 4794

Description
Technical Specification
Supplied With
Metabo Warranty
Delivery note

Metabo Diamond Core Drill BDE1100+CORES 240v

KPT Code: MEB-BDE1100+CORES-B

Feature Overview

1100W motor delivers 55Nm torque

Metabo Marathon motor

Chuck capacity 3 - 16 mm

Diamond core drill max. diameter 127mm

Excellent accessory kit supplied

The Metabo BDE1100 Diamond Core Drill is a powerful rotary drill with a 1100W motor capable of up to 55Nm of torque. This Metabo model has different speed settings that are controlled by use of the trigger to ensure the correct speed for the job.

Epoxy resin coated windings protect and strengthen the power of the motor
Ideal for diamond core drilling and drilling holes with large diameters
Safety clutch
Aluminium gear casing provides durability and motor cooling
Variospeed (V) electronics
Auto-stop carbon brushes
Supplied with a 5 piece diamond core drilling set which ensures excellent value

Metabo Diamond Core Drill BDE1100+CORES 240v Technical data

Torque 55 Nm/22 Nm
Drill diameter in - Steel 16 mm/10 mm - Softwood 40 mm/25 mm
Speeds at no load 0 - 640/0 - 1.200 /min
Rated input power 1.100 W
Speed at rated load 430/min/800 /min
Collar diameter 43 mm
Spindle thread 5/8 " - 16 UN
Chuck capacity 3 - 16 mm
Weight (excluding mains lead) 3,8 kg
Diamond core drill max. diameter 127mm

Geared chuck
Chuck key
Long side handle
Drilling depth guide
38mm diamond core bit
52mm diamond core bit
65mm diamond core bit
117mm diamond core bit
127mm diamond core bit
SDS-Plus adaptor
250mm long SDS-Plus adaptor
Hex adaptor
250mm long hex adaptor
Pilot drill bit
Extractor drift key
